ThermaPak PHE/Vessel Packages

Typical Unvented Kit

GMS ThermaPak

 Unvented Kit - ThermaPak

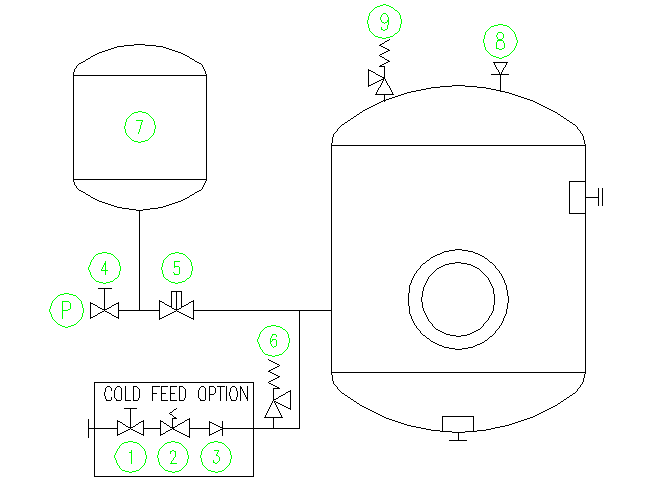

Typical Unvented Kit Layout

Please note that an unvented kit ordered with a ThermaPak PHE/Vessel Package can be supplied pre-piped and mounted onto the skid base.

  1. Isolating Valve
  2. Pressure Regulating Valve
  3. Check Valve
  4. Expansion Vessel Drain Valve
  5. Expansion Vessel Isolating Valve
  6. Expansion Vessel Relief Valve
  7. Expansion Vessel
  8. Anti-Vacuum Valve
  9. P/T safety Valve(s)
